The design of the rim enables maximum aerodynamic penetration: at wind angles between 10° and 20°, a situation that accounts for 80% of time on the saddle, this wheel is unequalled when it comes to overcoming drag.

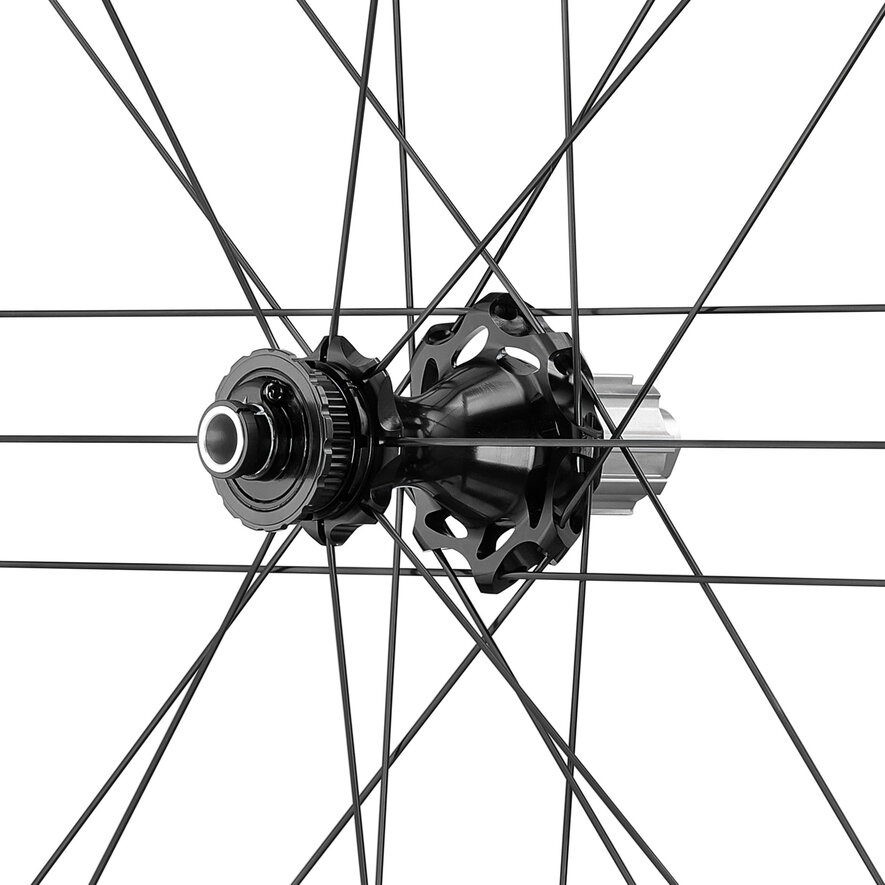

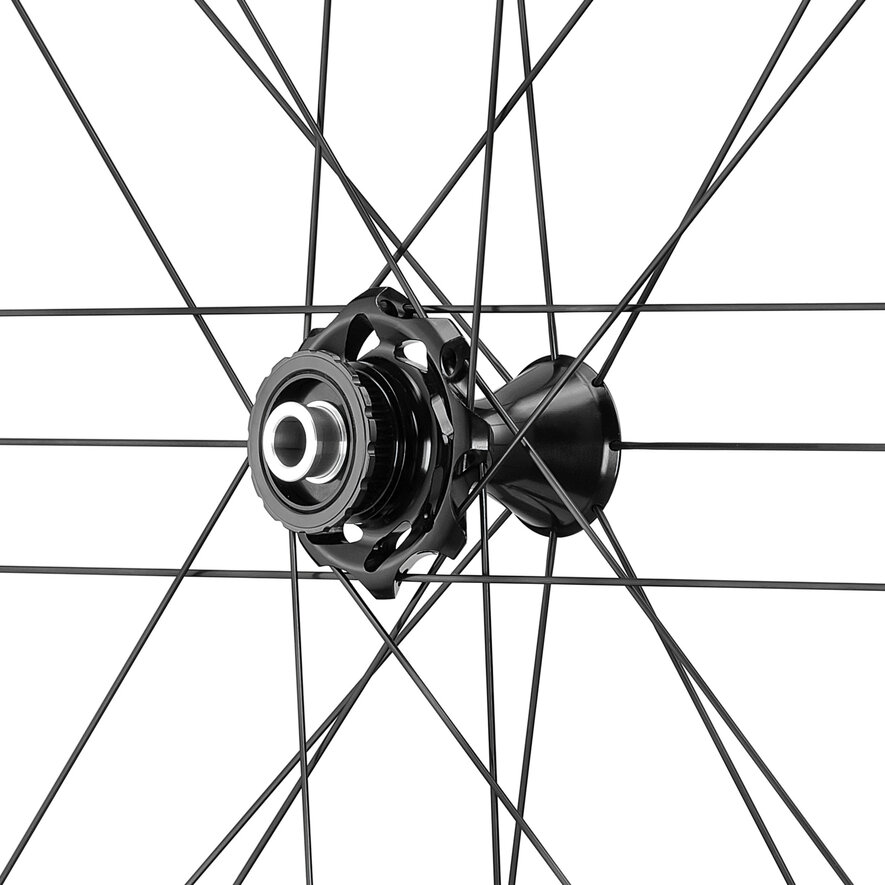

The streamlined design of the central part of the hub and the special design of the flanges decrease the frontal area of the component reducing airflow turbulence.
The 24-spoke pattern, along with their elliptical cross section, results in a far superior drag reduction.
FAST AND FLUID
The well-known USB cup-and-cone bearing system guarantees 50% greater smoothness than standard bearings.
The 2-Way Fit profile allows you to fit either a clincher tyre or to opt for a tubeless tyre and benefit from the lowest rolling resistance.
The 19 mm inner width enables you to fit 23, 25 and 28 mm tyres, with perfect pairing of the rim-tyre system.
CHOOSE AERO, BUT MAKE IT CAMPAGNOLO
The 60 mm profile allows the transfer of all the benefits of aerodynamic optimisation that can’t be achieved with lower profiles.
The wheel structure enables minimal energy dissipation, transferring all the energy produced by the cyclist to the asphalt.
A 60 mm profile with a wheelset weight of 1,590 g makes it the perfect ally to win sprint finishes, circuit races, time trials and cycling sections in triathlons.
- 1.590 g
- 24 steel spokes in the front elliptical aero cross section, spaced in groups of three through the G3 system
- 24 steel spokes in the rear elliptical aero cross section, spaced in groups of three through the G3 system
- Black aluminium monolithic hub
- USB cup-and-cone bearing system
- Hub edge: 100 mm in the front, 142 mm in the rear
- Axle type: 12mm aluminium thru axle
- Cup-and-cone bearing system
- Clincher
- Tubeless
- Profile height: 60 mm
- Rim material: carbon
- Rim cross section (H x W): 60/26.1mm
- Internal diameter of rim: 19 mm
- Water Transfer graphic
- The Bora™ WTO 60 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability
- 44 mm tubeless valve
- 40 mm valve extender
- Bushing to reduce the size of the valve hole
- 2 levers in composite material for tyre removal
- User manual
2-WAY FIT™
2-WAY FIT™ is the innovative profile that lets you fit either a tubeless tire or a classic clincher.
DYNAMIC BALANCE™
The concept is as simple as it is genius: balancing the weight of the rim joint with a mass of identical weight on the opposite side of the rim.
G3 SPOKE GEOMETRY
Campagnolo’s iconic G3 geometry challenges the conventional configuration of wheel spokes on racing bikes. Groups of three parallel straight-pull spokes are in fact arranged in a ratio of 2:1.
MOMAG™
An absolute genius of a magnet. It is the tried and tested, patented “Mounting Magnet” system: MoMag™ for short.
Thanks to 2-Way Fit™ technology, if you choose Campagnolo® wheels you can test them out to see which of the two solutions feels better for you, or use clinchers for training and tubeless for racing. Tubeless are without doubt the future of tires for road cycling. Apart from greater comfort, other big advantages include the fact that tubeless tires let you make the most of the greater smoothness due to the absence of friction between tire and inner tube. Plus, a tubeless will not suddenly deflate when punctured, which is definitely a good thing in terms of safety. And finally, tubeless tires do away with any risk of pinch flats, because there is no inner tube. If you get a puncture with a tubeless tire, the Campagnolo® 2-Way Fit™ system lets you simply remove the airtight valve, fit a classic inner tube and continue to pedal: problem solved.
RIM Dynamic Balance™ – aluminum wheels The concept is as simple as it is genius: balancing the weight of the rim joint with a mass of identical weight on the opposite side of the rim. For top-end models this is achieved by intervening on the section of the rim opposite the joint. SPOKES Dynamic Balance™ For entry-level models, the balance is achieved with two oversized spokes in the section opposite the joint. The result is a wheel with perfectly balanced rotational dynamics. RIM Dynamic Balance™ – Carbon wheels For carbon wheels, the principle is the same but the technology differs. The pieces of carbon cloth are aligned using a special procedure that ensures the rim is always balanced.
Campagnolo’s iconic G3 geometry challenges the conventional configuration of wheel spokes on racing bikes. Groups of three parallel straight-pull spokes are in fact arranged in a ratio of 2:1. Having twice as many spokes on one side allows wheels with G3 technology to achieve perfectly balanced tensions, increasing stiffness and improving energy transfer. An iconic design with unique style that helps to improve load absorption and reduce weights. The G3 spoke pattern also has a positive effect on the steering experience: the original triplet pattern reduces perceived vibrations, minimizing micro-deformation of the rim under tension and its response to stressors on the course. G3 geometry is designed with optimized solutions for front and back wheels. The front one has more spokes on the disc side to absorb braking loads. Whereas on the back one the same loads are transferred to twice the number of spokes on the cassette side through the monolithic hub body: an intuitive idea that enables functioning during both braking and energy transfer during pedaling. The G3 spoke pattern is used on Bora WTO and Bora Ultra WTO racing wheels, wheels in the Shamal family and on all the aluminum wheels in the Campagnolo collection.
WHAT IS THE MOMAG™? An absolute genius of a magnet. It is the tried and tested, patented “Mounting Magnet” system: MoMag™ for short. HOW DOES IT WORK? The nipples, once inserted inside the rim via the valve hole, are “guided” to the point of connection with the spoke by means of a magnet. This simple but ingenious system makes it possible to have a wheel without holes on the upper bridge, but with spokes tensioned by traditional nipples. ADVANTAGES No holes on the rim means that the rim is uniform at every point, free from stress points or zones of structural weakness. It offers a further advantage in terms of lightness for clincher profiles as no rim tape is required. The advantages are immediately clear: greater rim lifetime, greater resistance to fatigue, the possibility to give the spokes greater tension and greater stiffness, which, in terms of performance, mean better reactivity and ease of handling. But that’s not all. The advantages also include extremely quick simple spoke maintenance or replacement. MOMAG™ technology is used on Bora WTO carbon wheels for racing bikes and on Shamal Carbon, Levante and Hyperon Ultra wheels.
